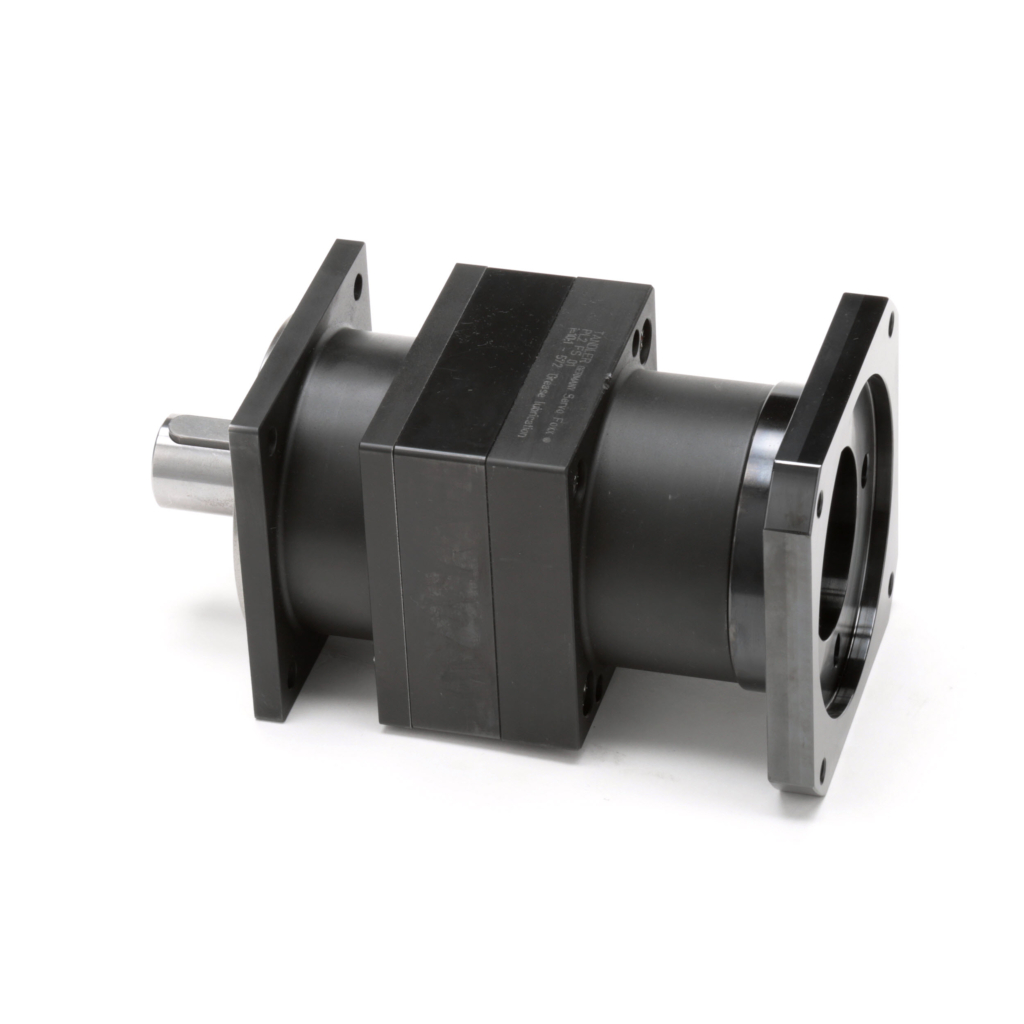

Tandler – PL2FS Inline Servo Gearheads
The Tandler PL2FS inline servo gearbox is engineered for high-performance motion control applications that demand accuracy, efficiency, and flexibility. Featuring precision-ground, matched-set planetary gearing and a revolutionary motor mount, this gearbox ensures optimal alignment, minimal deflection, and smooth power transmission.
This inline servo gearbox supports a wide range of configurations with four available sizes and 18 standard ratios—eight single-stage and ten two-stage options—scalable up to 10,000:1 using multi-stage combinations. Designed with durability in mind, it offers lifetime lubrication, high torque handling, and superior torsional rigidity with its robust cast iron housing.
- 4 sizes
- 18 “standard” ratios up to 100:1; 8 single-stage ratios, 10 two-stage ratios
- Any ratio combination in multi-stage gearboxes up to 10,000:1 is possible
- Nominal torque capacity up to 815 Nm
- Peak torque up to 1600 Nm
- Lifetime Lubrication
- Low Backlash: Two levels of backlash optimize and enhance positioning accuracy; standard <6 arc minutes, Reduced <3 arcmin.
- Revolutionary Motor Mount: A flexible motor connection eliminates misalignment and gear deflection
- Corrosion Resistant: QPQ Nitriding process provides protection against high moisture environments
- Cast Iron Housing: Provides superior torsional rigidity over aluminum housings
- More Ratios: Any ratio using combinations of 3:1 to 10:1 are possible
What’s Next?
Other Models Available
Why Choose a Tandler Servo Gearhead?
The Tandler ServoFoxx series PL2FS inline planetary servo gearhead provides the ultimate in motion control. Prime benefits are low backlash, high rigidity, and the widest range of ratios. A revolutionary motor connection system maximizes performance.
