Gearsync – Helical Parallel Gearmotors and Gearboxes

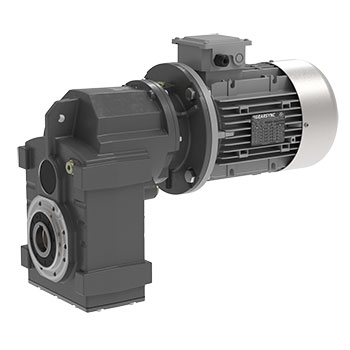

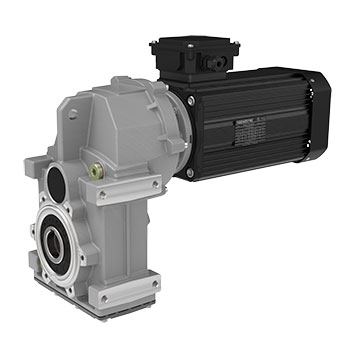

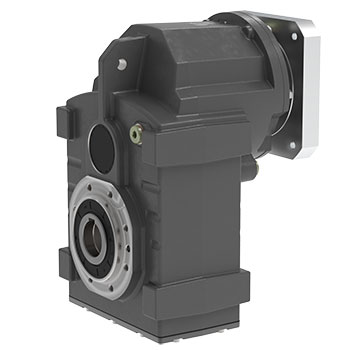

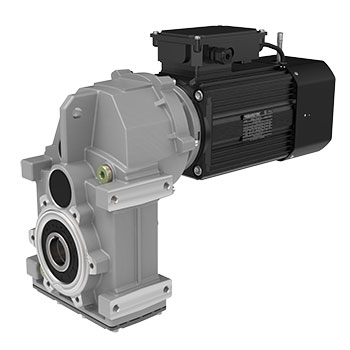

Explore DieQua’s new modular gearbox series: the Helical Parallel GP and GHP models, purpose-built for high efficiency, flexibility, and compact design. These gear units feature a parallel shaft configuration that significantly reduces installation footprint, making them ideal for space-constrained applications without compromising performance.
Engineered for maximum adaptability, the GP and GHP series are available in five frame sizes and offer a broad torque range—from 10 Nm (7.5 ft-lbs) up to 3,200 Nm (2,361 ft-lbs)—ensuring optimal performance across various industrial automation and motion control environments. The modular design supports multiple input configurations, including NEMA, IEC, and servo motor mounts, allowing seamless integration into both standard and custom drive systems.
Precision-machined components and a rugged housing design ensure long service life, high reliability, and minimal maintenance, even in demanding duty cycles. Whether you’re upgrading existing systems or designing new machinery, GearSync Parallel Reducers provide the modularity and performance today’s applications demand.
- 5 sizes
- Input power capacities from 0.12kW-22kW
- Gear ratios: 5.66-405.42:1
- IP66 rated motor with class F insulated windings
- Input shaft version available
- Output flange option available
- Output shaft option available
- Torque arm option available
- Parallel shaft design minimizes installation footprint in tight spaces
- Short-profile construction suitable for shaft-mounted or base-mounted setups
- Dual-output shaft options available for synchronized motion systems
- Designed for efficient load distribution across multiple stages
- Low-noise operation thanks to optimized tooth geometry
- High-load carrying capacity for bulk material handling and conveyor applications
- Shock-resistant housing ideal for dynamic or reversing loads
- Flexible positioning with side, base, or flange mounting configurations
- Torque output range from 200 Nm up to 3200 Nm
Coming Soon!
Quick Select Guide – PDF (2MB)
What’s Next?
Other Models Available
Why Choose a Gearsync Gearbox?
A major advantage of the Gearsync servo gear unit is its high efficiency, reduced backlash, and high torsional stiffness, ensuring precise positioning, misalignment compensation, and stability in dynamic applications such as robotics, automation, and packaging machining. Key features include seamless integration input and flexible coupling design advantages. The high degree of modularity is a design feature of GI and GHI helical in-line speed reducers and geared motors range. It is possible to set up the version required using flanges or feet. DieQua Corporation’s extensive knowledge of gear technology, in-house repair services (especially emergency breakdowns for quick turnaround), and ability to create custom solutions for optimal performance, further enhance the value of the Gearsync product line. As an ISO 9001-certified company, DieQua ensures that all products meet the highest quality and performance standards, providing customers with a single-source supplier for gearboxes, couplings, and gear motors.
