Industrial Servo Worm Flanges
There are few industry standards regulating servo motor mounting dimensions. DieQua stocks an enormous number of different flanges and mounting components, additionally we can produce motor adapter flanges to accommodate a wide range of non-standard servo and step motors to our reducers
There are two ways to select the proper mounting flange and coupling. The first and most accurate way is to provide the motor performance data and mounting dimensions listed below. Our technical staff will review the motor mounting dimensions and select the proper flange and coupling. They will also double check the motor torque data to make sure the gearbox is properly sized for the motor.

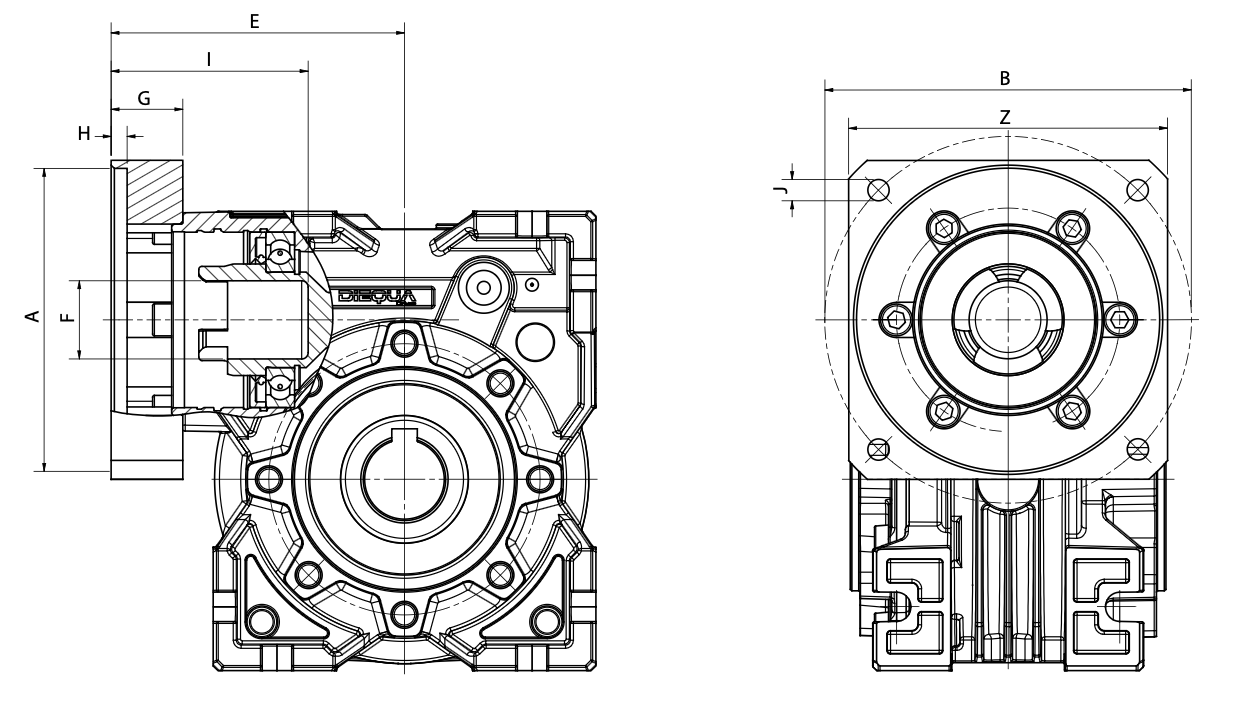

| Series | Code | ø | Pilot | Bolt circle | Pilot Depth | Bolt‐N°Bolt | Flange thickness | |
|---|---|---|---|---|---|---|---|---|
| ISW028 | DQM‐763** | 57 | 22 | 66.675 | 5 | ø4.5 - 4 | 10 | |
| DQM‐368** | 57 | 21.97 | 43.812 | 5 | ø5.5 | 10 | ||
| DQM‐623** | 57 | 25.4 | 38.887 | 5 | ø3.8 | 10 | ||
| DQM‐367** | 57 | 24.92 | 38.8 | 5 | ø8 | 10 | ||
| DQM‐512 | 60 | 30 | 46 | 5 | M4 - 4@45º | 21 | ||
| DQM‐322 | 60 | 36 | 70.7 | 17.5 | M4 - 4 | 21 | ||
| DQM‐333 | 60 | 38.1 | 66.666 | 3.5 | M4 - 4 | 21 | ||
| DQM‐653 | 60 | 50 | 66.666 | 5 | M5 - 4 | 21 | ||
| DQM‐324 | 60 | 50 | 70 | 5 | M5 - 4 | 21 | ||
| DQM‐430 | 60 | 50 | 70 | 5 | M4 - 4 | 21 | ||
| DQM‐772 | ø88.9 | 51 | 69.875 | 5 | ø6.8 | 21 | ||
| DQM‐601 | 67 | 40 | 81 | 5 | M6 - 4 | 15.5 | ||
| DQM‐532 | 70 | 60 | 75 | 5 | M5 - 4 | 21 | ||
| DQM‐539 | 85 | 60 | 99 | 5 | M6 - 4 | 21 | ||
| DQM‐389 | 87 | 73.03 | 98.4 | 4.5 | M5 - 4 | 22.5 | ||
| DQM‐624 | 87 | 80 | 100 | 5 | 21 | |||
| * Requires DQM‐342 Spacer | ||||||||
| ** Requires APP.05.0006 without above spacer | ||||||||
| ISW040 | DQM-738** | 80 | 25 | 48 | 4.5 | Ø5.5 - 4 | 10 | |
| DQM-801 | 65 | 35 | 50 | 7.5 | M3-4 | 21 | ||
| DQM-637*** | 85 | 36 | 70.711 | 5 | M4 - 4 | 8 | ||
| DQM-521 | 70 | 38.1 | 66.675 | 4.5 | M4 -4 | 15 | ||
| DQM-436 | 70 | 40 | 63 | 5 | M5 - 4 | 15 | ||
| DQM-343 | 70 | 50 | 70 | 4 | M5 - 4 | 21 | ||
| DQM-343A | 70 | 50 | 70 | 7.5 | M5 - 4 | 21 | ||
| DQM-588 | 70 | 50 | 70 | 4 | M4 - 4 | 21 | ||
| DQM-386 | 72 | 60 | 75 | 5 | M5 - 4 | 15 | ||
| DQM-646 | 85 | 60 | 98.995 | 5 | M5 - 4 | 15 | ||
| DQM-422 | 87 | 73.025 | 98.425 | 4.5 | M5 - 4 | 15 | ||
| DQM-422A* | 87 | 73.025 | 98.425 | 4.5 | M6 - 4 | 15 | ||
| DQM-422B | 87 | 73.025 | 98.425 | 4.5 | M6 - 4 | 15 | ||
| DQM422C | 87 | 73.025 | 98.425 | 4.5 | M6 - 4 | 15 | ||
| DQM-365 | 85 | 80 | 100 | 4.5 | M6 - 4 | 15 | ||
| DQM-681 | 104 | 94 | 120 | 4.5 | M6 - 4 | 15 | ||
| * DQM-422A Includes O-Ring grove on mounting face. | ||||||||
| ** Requires A18.0008A | ||||||||
| *** Requires DQM-365 | ||||||||
| ISW050 | DQM-359 | 80 | 50 | 70 | 3.5 | M4 - 4@45º | 21 | |
| DQM-487 | 90 | 60 | 75 | 3.5 | M5 - 4@45º | 22.5 | ||
| DQM-327 | 80 | 70 | 90 | 3.5 | M6 - 4 | 22 | ||
| DQM-376 | 86 | 73 | 98.43 | 5 | M5 - 4 | 22.5 | ||
| DQM-315 | 88 | 80 | 100 | 5 | M6 - 4 | 15 | ||
| DQM-405 | 100 | 95 | 115 | 5 | M8 - 4 | 22.5 | ||
| DQM-760 | 130 | 110 | 145 | 7.5 | M8 - 4 | 30 | ||
| DQM-363 | 135 | 110 | 155 | 3.5 | M8 - 4 | 15 | ||
| ISW60 | DQM-636* | 85 | 40 | 63 | 7.5 | M5 - 4 | 9.5 | |
| DQM-486 | 92 | 50 | 70 | 5 | M5 - 4 | 22.5 | ||
| DQM-615 | 110 | 55.52 | 125.865 | 5 | M8 - 4 | 22.5 | ||
| DQM-777 | 92 | 60 | 75 | 5 | M5 - 4 | 22.5 | ||
| DQM-380 | 85 | 60 | 98.99 | 5 | M6 - 4 | 22.5 | ||
| DQM-377 | 90 | 73 | 98.43 | 5 | M5 - 4 | 22.5 | ||
| DQM-384 | 90 | 80 | 100 | 5 | M6 - 4 | 22.5 | ||
| DQM-609 | 112 | 85 | 132 | 5 | M8 - 4 | 22.5 | ||
| DQM-390 | 100 | 95 | 115 | 5 | M8 - 4 | 22.5 | ||
| DQM-732 | 142 | 130 | 165 | 5 | Ø13 - 4 | 22.5 | ||
| * Requires APP.09.0009 | ||||||||
| ISW70 | DQM-511 | 92 | 60 | 75 | 8 | M5 - 4 @ 45º | 22.5 | |
| DQM-712 | 90 | 70 | 105 | 3 | M5 - 4 | 13 | ||
| DQM-438 | 92 | 73 | 98 | 5 | M5 - 4 | 22.5 | ||
| DQM-573 | 100 | 80 | 100 | 8 | M6 - 4 | 22.5 | ||
| DQM-406 | 100 | 95 | 115 | 5 | M8 - 4 | 22.5 | ||
| DQM-575 | 100 | 95 | 130 | 5.5 | M8 - 4 | 22.5 | ||
| DQM-733 | 115 | 110 | 130 | 5 | M10 - 4 | 30 | ||
| DQM-506 | 125 | 110 | 145 | 5 | M8 - 4 | 30 | ||
| DQM-518 | 145 | 130 | 165 | 5 | M12 - 4 | 30 | ||
| ISW85 | DQM-424 | 120 | 70 | 90 | 5 | M6 - 4 | 22.5 | |
| DQM-437 | 120 | 80 | 100 | 5 | M6 - 4 | 22.5 | ||
| DQM-595 | 120 | 110 | 130 | 7 | M8 - 4 | 30 | ||
| DQM-568 | 130 | 110 | 145 | 7 | M8 - 4 | 30 | ||
| DQM-731 | 142 | 110 | 165 | 7 | M12 - 4 | 35 | ||
| ISW110 | DQM-608 | 115 | 70 | 90 | 8 | M6 - 4 | 22.5 | |
| DQM-508 | 130 | 110 | 130 | 8 | M8 - 4 | 22.5 | ||
| DQM-464 | 130 | 110 | 145 | 8 | M8 - 4 | 36 | ||
| DQM-572 | 145 | 130 | 165 | 8 | M10 - 4 | 36 | ||
