High Performance Servo Worm Flanges

There are few industry standards regulating servo motor mounting dimensions. DieQua stocks an enormous number of different flanges and mounting components, additionally we can produce motor adapter flanges to accommodate a wide range of non-standard servo and step motors to our reducers

There are two ways to select the proper mounting flange and coupling. The first and most accurate way is to provide the motor performance data and mounting dimensions listed below. Our technical staff will review the motor mounting dimensions and select the proper flange and coupling. They will also double check the motor torque data to make sure the gearbox is properly sized for the motor.

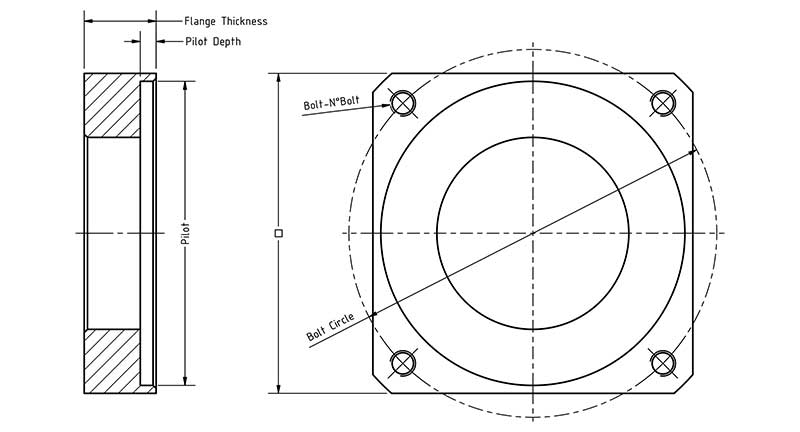

HPSW	Flange Part Number	Pilot Diameter	Pilot Depth	Input Shaft Max. depth	Bolt Circle	Mounting Screw dim.	Mounting flange face to Center line	Housing to output shaft center line
[Size]	Designaton	[A]	[B]	[C]	[D]	[E]	[L]	[Z]
025	HPSW-025-046/030	30	4	27	46	M3	80	58
	HPSW-025-063/040	40	4	27	63	M4	80	65
	HPSW-025-070/050	50	4	32	40	M4	85	65
	HPSW-025-075/060	60	4	32	75	M5	85	65
	HPSW-025-090/070	70	4	32	90	M5	85	90
	HPSW-025-095/070	70	4	32	95	M6	85	90
	HPSW-025-100/080	80	5	42	100	M6	95	90
	HPSW-025-115/095	95	5	52	115	M8	105	105
035	HPSW-035-063/040	40	4	32	63	M4	111	65
	HPSW-035-070/050	50	4	35	70	M4	114	65
	HPSW-035-075/060	60	4	35	75	M5	114	65
	HPSW-035-090/070	70	4	45	90	M5	124	90
	HPSW-035-100/080	80	5	45	100	M6	124	90
	HPSW-035-115/095	95	5	45	115	M8	124	118
	HPSW-035-130/095	95	5	55	130	M8	130	118
	HPSW-035-130/110	110	5	55	130	M8	134	118
	HPSW-035-145/110	110	6.5	65	145	M8	144	118
045	HPSW-045-070/050	50	4	35	70	M4	135	81
	HPSW-045-075/060	60	4	35	75	M5	135	81
	HPSW-045-090/070	70	4	45	90	M5	145	91
	HPSW-045-095/050	50	4	35	95	M6	135	91
	HPSW-045-100/080	80	5	45	100	M6	145	91
	HPSW-045-115/095	95	5	45	115	M8	145	115
	HPSW-045-135/095	95	5	55	130	M8	155	115
	HPSW-045-130/110	110	5	55	130	M8	155	115
	HPSW-045-145/110	110	6.5	65	145	M8	165	140
	HPSW-045-165/110	110	6.5	55	165	M10	155	140
	HPSW-045-165/130	130	6.5	55	165	M10	155	140
055	HPSW-055-070/050	50	4	35	70	M4	146	81
	HPSW-055-075/060	60	4	35	75	M5	146	81
	HPSW-055-090/070	70	4	45	90	M5	156	91
	HPSW-055-095/050	50	4	35	95	M6	146	91
	HPSW-055-100/080	80	5	45	110	M6	156	91
	HPSW-055-115/095	95	5	45	115	M8	156	115
	HPSW-055-130/095	95	5	55	130	M8	166	115
	HPSW-055-130/110	110	5	55	130	M8	166	115
	HPSW-055-145/110	110	6.5	65	145	M8	176	140
	HPSW-055-165/110	110	6.5	55	165	M10	166	140
	HPSW-055-165/130	130	6.5	55	165	M10	166	140
063	HPSW-063-070/050	50	4	35	70	M4	146	81
	HPSW-063-075/060	60	4	40	75	M5	160	102
	HPSW-063-090/070	70	4	46	90	M5	166	102
	HPSW-063-100/080	80	5	46	100	M6	166	102
	HPSW-063-115/095	95	5	46	115	M6	166	115
	HPSW-063-130/095	95	5	56	130	M8	176	115
	HPSW-063-130/110	110	5	56	130	M8	176	115
	HPSW-063-145/110	110	6.5	66	145	M8	186	140
	HPSW-063-165/110	110	6.5	56	165	M10	176	140
	HPSW-063-165/130	130	6.5	56	165	M10	176	140
	HPSW-063-200/114.3	114.3	6.5	86	200	M10	206	185
	HPSW-063-215/130	130	6.5	66	215	M12	186	185
	HPSW-063-215/180	180	6.5	66	215	M12	186	185
075	HPSW-075-070/050	50	4	40	70	M4	185	102
	HPSW-075-075/060	60	4	40	75	M5	185	102
	HPSW-075-090/070	70	4	46	90	M5	191	102
	HPSW-075-100/080	80	5	46	100	M6	191	102
	HPSW-075-115/095	95	5	46	115	M8	191	115
	HPSW-075-130/095	95	5	56	130	M8	201	115
	HPSW-075-130/110	110	5	56	130	M8	201	115
	HPSW-075-145/110	110	6.5	66	145	M8	211	140
	HPSW-075-165/110	110	6.5	56	165	M10	201	140
	HPSW-075-165/130	130	6.5	56	165	M10	201	140
	HPSW-075-200/114.3	114.3	6.5	86	200	M10	231	185
	HPSW-075-215/130	130	6.5	66	215	M12	211	185
	HPSW-075-215/180	180	6.5	66	215	M12	211	185
090	HPSW-090-100/080	80	4	46	100	M6	205.5	123
	HPSW-090-115/095	95	5	46	115	M8	205.5	123
	HPSW-090-130/095	95	5	56	130	M8	215.5	123
	HPSW-090-130/110	110	5	56	130	M8	215.5	123
	HPSW-090-145/110	110	6.5	66	145	M8	225.5	140
	HPSW-090-165/110	110	6.5	56	165	M10	215.5	140
	HPSW-090-165/130	130	6.5	56	165	M10	215.5	140
	HPSW-090-200/114.3	114.3	6.5	86	200	M10	245.5	185
	HPSW-090-215/130	130	6.5	66	215	M12	225.5	185
	HPSW-090-215/180	180	6.5	66	215	M12	225.5	185
	HPSW-090-300/250	250	6.5	88	300	M14	247.5	260
110	HPSW-110-100/080	80	4	46	100	M6	229	123
	HPSW-110-115/095	95	5	46	115	M8	229	123
	HPSW-110-130/095	95	5	56	130	M8	239	123
	HPSW-110-130/110	110	5	56	130	M8	239	123
	HPSW-110-145/110	110	6.5	66	145	M8	249	140
	HPSW-110-165/110	110	6.5	56	165	M10	239	140
	HPSW-110-165/130	130	6.5	56	165	M10	239	140
	HPSW-110-200/114.3	114.3	6.5	86	200	M10	269	185
	HPSW-110-215/130	130	6.5	66	215	M12	249	185
	HPSW-110-215/180	180	6.5	66	215	M12	249	185
	HPSW-110-300/250	250	6.5	88	300	M14	271	260

HPSW	Flange Part Number	Pilot Diameter	Pilot Depth	Input Shaft Max. depth	Bolt Circle	Mounting Screw dim.	Mounting flange face to Center line	Housing to output shaft center line
[Size]	Designaton	[A]	[B]	[C]	[D]	[E]	[L]	[Z]
125	HPSW-125-115/095	95	5	42	115	M8	247	190
	HPSW-125-130/095	95	5	52	130	M8	257	190
	HPSW-125-130/110	110	5	52	130	M8	257	190
	HPSW-125-145/110	110	6.5	62	145	M8	267	190
	HPSW-125-165/110	110	6.5	52	165	M10	257	190
	HPSW-125-165/130	130	6.5	52	165	M10	257	190
	HPSW-125-200/114.3	114.3	6.5	82	200	M10	287	190
	HPSW-125-215/130	130	6.5	62	215	M12	267	190
	HPSW-125-215/180	180	6.5	62	215	M12	267	190
	HPSW-125-265/230	230	6.5	85	265	M12	290	260
	HPSW-125-300/250	250	6.5	85	300	M14	290	260
	HPSW-125-350/300	300	8.5	112	350	M16	317	360
160	HPSW-160-165/130	130	6.5	52	165	M10	321	200
	HPSW-160-200/114.3	114.3	6.5	82	200	M10	351	200
	HPSW-160-215/130	130	6.5	62	215	M12	331	200
	HPSW-160-215/180	180	6.5	62	215	M12	331	200
	HPSW-160-265/230	230	6.5	85	265	M12	331	260
	HPSW-160-300/250	250	6.5	85	300	M14	354	260
	HPSW-160-350/300	300	8.5	112	350	M16	381	360
200	HPSW-200-165/130	130	6.5	52	165	M10	365	200
	HPSW-200-200/114.3	114.3	6.5	82	200	M10	399	200
	HPSW-200-215/130	130	6.5	62	215	M12	379	200
	HPSW-200-215/180	180	6.5	62	215	M12	379	200
	HPSW-200-265/230	230	6.5	85	265	M12	402	260
	HPSW-200-300/250	250	6.5	85	300	M14	402	260
	HPSW-200-350/300	300	8.5	112	350	M16	429	360
	HPSW-200-400/350	350	10.5	42	400	M16	460	420
