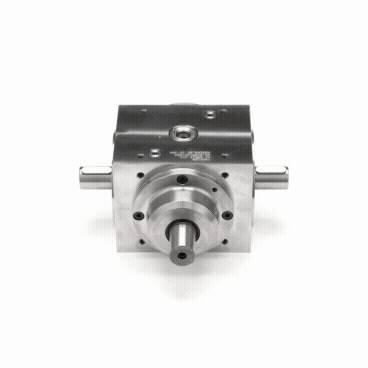

Tandler – Series DA, EA & ZA Two and Three Way Power Takeoff Spiral Bevel Gearbox
These two- and three-way right-angle gearboxes from Tandler offer up to 6-shaft extensions for power take-off in the same or perpendicular planes. Some versions of these three-way right-angle gearboxes are available with hollow shafts and mounting flanges.
Power capacities from 1 – 300 HP
11 reducing ratios from 1:1 to 6:1
4 increasing ratios from 1:1.25 to 1:2
Standard backlash of 5 – 6 arc minutes
Reduced backlash available
Low Backlash: Hardened and lapped matched set gearing provides smooth, reliable, and predictable rotary motion
Universal Mounting: Machined housing and tapped holes allow mounting on all six sides, making this an inline and perpendicular gearbox
Machined Flanges: Provides alignment for perfect shaft centering
Bearing Options: Ball bearings for quiet operation, tapered bearings for higher radial load capacity
Special Designs: Standard models of these power take-off two- and three-way right-angle gearboxes can be modified for maximum design versatility
What’s Next?
Other Models Available
Related Products
Right Angle Drives
Double Planetary Inline Drives
Single Planetary Inline Drives
Variable Speed Drives
Why Choose a Tandler Spiral Bevel Gearbox?
Tandler® spiral bevel gearboxes give you a wide selection of interface options and output configurations, for unsurpassed design flexibility. They are ideal for demanding applications requiring high speed, precise motion, low backlash, or special environmental conditions.
